Ford Super Duty Dynamic LED Headlight Adapter (2023-2024)

Looking for a way to connect accessories to DRL, Parking or Turn circuits on your Super Duty LED headlights? This adapter allows complete plug-n-play operation and is compatible with 2023+ F-Series trucks that came with LED headlights from the factory.

Features and Benefits:

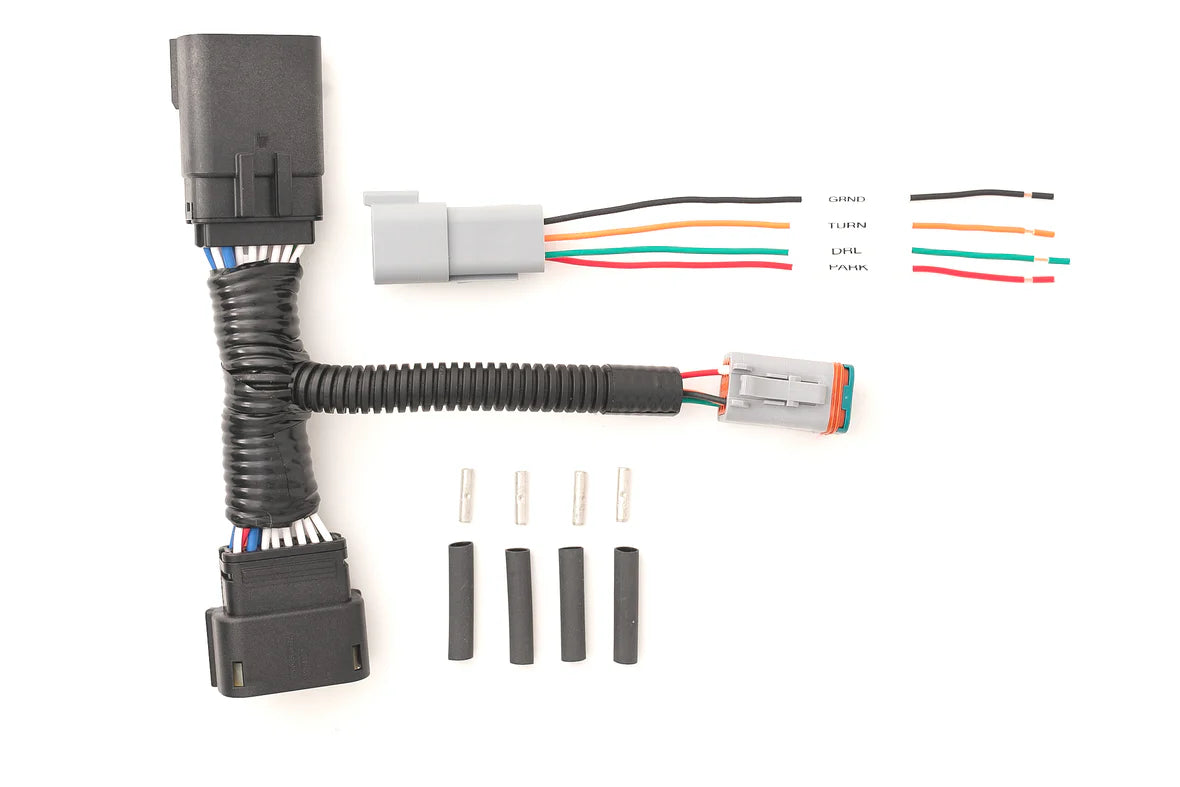

• Provides access to DRL, Parking, Turn and Ground circuits.
• Only OEM quality connectors & wire are used – don’t settle for anything less!
• The best way to power accent lights, turn signals, Raptor-Style ‘FORD’ letter grilles or ANY grille that has LED running/marker lights. Also makes powering backlights found on some LED Light Bars/ Pods very simple.**
• Simple way to control LED’s with integrated switchback turn signals.
• Can also be used as a relay trigger.**
• No cutting or splicing required – just plug the new adapter into your existing factory connections and then use the provided pigtail to connect the desired circuits.
• Maintains your factory headlight warranty.
• Assembled in USA!

**Note: Some circuits are programmed from the factory on a specific duty cycle that may result in lower voltage output than 12v in certain situations. For example, the DRL circuit may run at a lower duty cycle depending on ambient light outside. Depending on the type of accessory you are powering, this can cause issues with brightness or function. The adapter provides access to the circuit, but functionality may vary.

Fitment

• 2023-2024 Ford F250, F350, F450, F550 with LED Headlights

What’s Included:

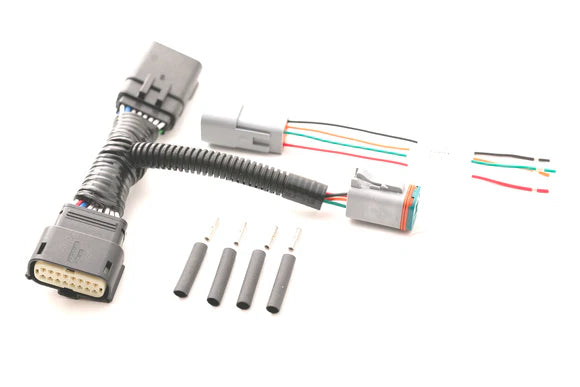

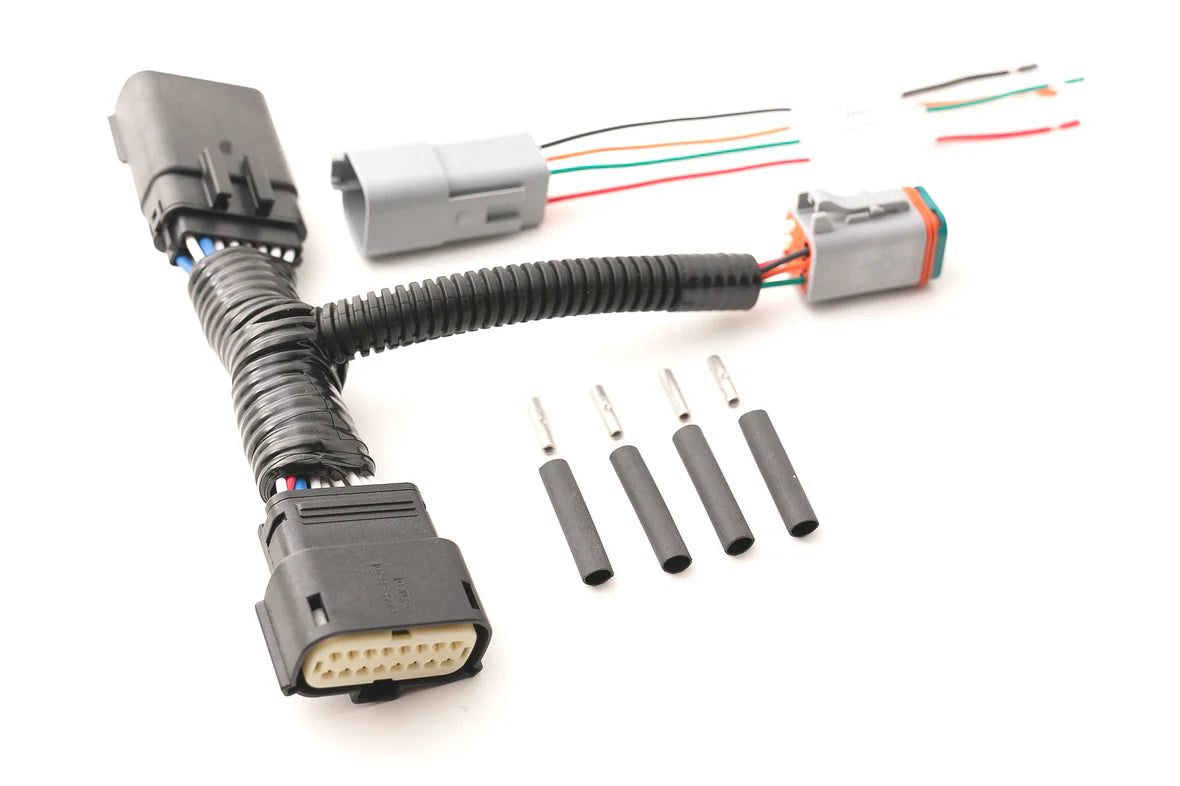

• One 6-inch adapter with weatherproof connectors
• Deutsch Pigtail (Starkey SKU# 5013)
• 5 Year Limited Warranty

Technical Specifications:

• Max Continuous Amp Draw (Per Circuit): 2
• For 12v System

Installation:

• Installation difficulty = Very Low
• Installation time = 5 minutes
