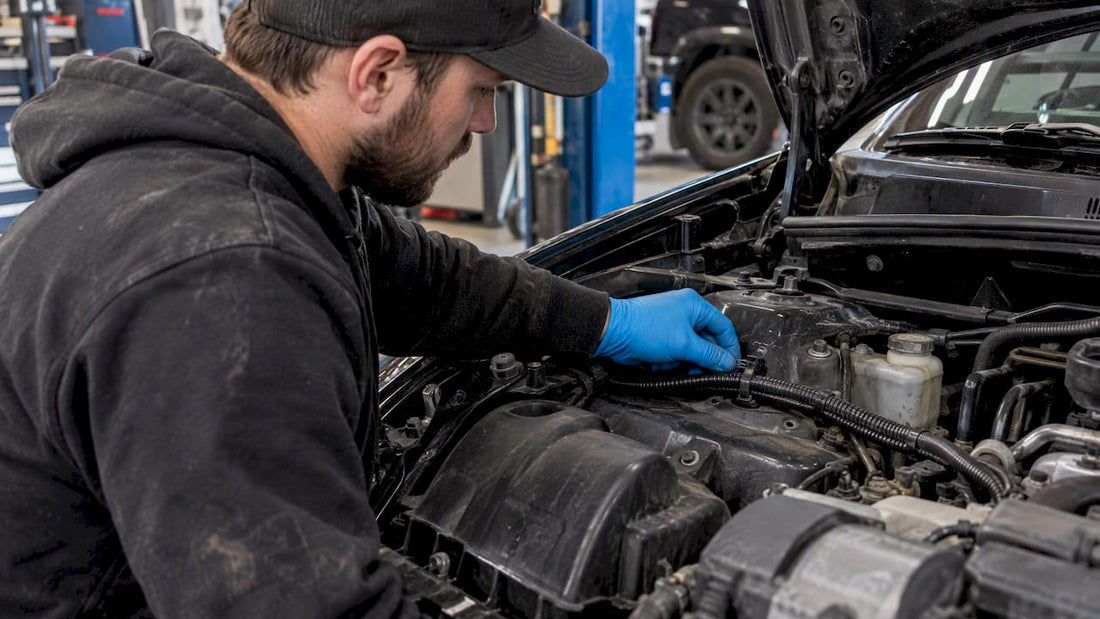

Technician placing first wire harness clamp

Wire Harness Routing for Shops and DIYers: First Clamp 50–80 mm

The correct approach to wire harness routing combines mechanical protection, proper bend radius, and strain relief at the first clamp point, a method Wheel Light Express follows when designing its own harnesses, anchored by SAE/USCAR-21 crimp standards. Get these three elements right and most long-term wiring failures never happen.

TL;DR:

  • Keep static bends within three times the bundle diameter and flexing sections at five to ten times to prevent premature wire fatigue and insulation damage.
  • Place the first cushioned clamp 50 to 80 millimeters from connectors to ensure strain relief and avoid load transfer into crimps or terminations.
  • Maintain at least 100 millimeters of separation between power and signal wires to reduce electromagnetic interference and avoid intermittent sensor faults.
  • Use form boards and mock routing to verify clearance, length, and fit before installing, minimizing costly rework or damage.
  • Follow SAE/USCAR-21 crimp standards and ensure every termination is inspected for quality, supporting a harness lifespan of over 15 years.
Wheellightexpress
Build Lighting With Better Routing
Wheel Light Express designs unique automotive lighting solutions, including wire harnesses and LED strips, in Louisiana.
Explore lighting solutions

Table of Contents

Essential routing principles: bend radius, clearance, and harness lifespan

Routing decisions made in the first hour of a build determine whether a harness lasts years or fails within months. The rules are straightforward, and ignoring them is the most common reason wiring jobs come back for repair.

  • Keep static bends at three times the bundle diameter and dynamic or flexing sections at five to ten times that diameter.
  • Maintain clearance from exhaust components, manifolds, and any edge that is not deburred or protected.
  • Use grommets at every panel pass-through and edge protection wherever a harness crosses sheet metal.
  • Support bundles regularly so wire weight never rests entirely on a connector or clip.

Tight 90 degree bends combined with missing grommets create predictable failure patterns: wire fatigue, insulation abrasion, and intermittent shorts that often take months to surface according to the EMS handbook’s routing guide. A harness that abrades against an unprotected edge will eventually ground out, and by the time the symptom appears, the damage is already done.

Planning the path: form boards, mock routing, and firewall pass-throughs

Before any wire gets cut, the geometry needs to be proven on a form board. This step catches length errors and clearance conflicts while they are cheap to fix, rather than after the harness is loomed and installed.

  1. Transfer the CAD or paper layout to the board, offsetting routing nails by half the bundle diameter so the finished harness matches real-world dimensions, a practice detailed in form board and routing design guidance.
  2. Use sleeved nails at bend points and connector jigs at each termination to hold shape during lacing.
  3. Route the firewall and engine-bay sections last, keeping clearance from HVAC blower housings, belts, and any component with regular movement.
  4. Size grommets to the bundle diameter plus growth allowance, and group adjacent circuits through a single pass-through rather than drilling multiple holes.

Digital mockup tools, including SOLIDWORKS Electrical routing help, let builders validate a route before committing to a physical form board, which is useful when a design will be repeated across multiple vehicles. Our blog post on harness installation fundamentals covers this planning stage in more depth for lighting-specific builds.

Clamp, secure, and relieve strain: placement and lacing rules

Strain relief is the difference between a harness that survives years of vibration and one that fails at the connector within months. The first clamp carries the most mechanical load of any point on the harness.

  • Place the first cushioned clamp 50 to 80 millimeters from the connector backshell so the clamp, not the termination, absorbs flex and vibration.
  • Form the first bend after that clamp point, never before it, so load transfers into the mount rather than the crimp.
  • Use cushioned P-clamps near heat sources and anywhere the harness needs to stay serviceable.
  • Reserve metal clamps for fixed, low-heat runs where vibration resistance matters more than quick disassembly.
  • Lace sections that need a finished look or extra abrasion resistance, using consistent tension throughout the run.

Pro Tip: Use a tension-controlled tie tool rather than hand-pulling zip ties: overtightened ties cut into insulation just as easily as a sharp bracket edge.

EMC, thermal, and clearance considerations that affect routing choices

Electrical noise and heat both travel through poor routing decisions, and both are preventable with planning rather than cost.

  • Maintain at least 100 millimeters of separation between power or high-current switching lines and low-level signal wires, crossing at 90 degrees only when separation is not possible, per EMC routing guidance.
  • Avoid surfaces above 85°C, or add heat sleeving and standoffs where proximity to an exhaust or manifold is unavoidable.
  • Route near grounded metal panels and clamp points to minimize loop area, which reduces induced noise on sensitive circuits.

A harness routed with no separation between power and signal runs is one of the more common causes of intermittent sensor faults that owners chase for weeks before finding the real cause.

Bench assembly and crimp quality: sequence and inspection points

A disciplined build sequence on the form board keeps bundles organized and makes later inspection easier. Skipping the order usually means re-pulling wires after the fact.

  1. Route heavy and large-gauge wires first, since they set the physical path other circuits follow.
  2. Add signal wires and twisted pairs last, keeping them clear of the power runs already in place.
  3. Build in service loops at major bends and leave the 25 millimeters nearest each connector free of strain-relief ties so the termination can flex slightly without transferring load.
  4. Support breakout points where a smaller bundle splits off, so the junction does not become a stress point.
  5. Crimp every termination to SAE/USCAR-21 requirements using a calibrated tool, since that standard simulates roughly 15 years and 150,000 miles of vehicle life for solderless crimps.

Our connector and crimping guide walks through sealed connector choices that pair well with this sequence for lighting circuits.

Common mistakes and troubleshooting after install

Most routing problems show up the same way every time, and catching them early is far cheaper than chasing an intermittent fault months later.

  • Tight 90 degree bends right at a connector, instead of a gradual bend past the first clamp.
  • Clamps placed too far from the connector, leaving the termination to absorb vibration.
  • Ties cinched over sharp brackets or unfinished edges instead of grommets or edge guards.
  • No service loop at a moving panel or hinge, which eventually snaps a conductor.

A quick dynamic sweep test, flexing the harness through its full range while watching for pinch points, combined with a visual check of every breakout and clamp, catches most of these before they become field failures. Where a fix is needed, adding an edge guard, relocating a clamp, or replacing a questionable crimp usually solves it without a full re-route. A 2" rubber grommet and pigtail connector set is a practical fix for an unprotected panel pass-through on trailer or marker light circuits.

Shop notes from building lighting harnesses

We design and build wiring for lighting kits every day, and the failures we see most often trace back to a missing first clamp or a bend formed too close to the connector, not exotic causes. Every harness we design uses over-spec wire gauge and a cushioned first clamp as standard practice, because replacing a clamp later is cheaper than replacing a harness. We stand behind every kit with a satisfaction guarantee.

— Christopher

Ready-made harnesses built for the routing rules above

If building a harness from scratch is not the project you want, we offer lighting kits with harnesses already engineered around the clamp placement, bend radius, and strain relief principles covered here. Every kit we design uses over-spec wiring and heavy-duty brackets, so the routing work is already done before the box arrives.

Wheellightexpress

Every kit ships with a satisfaction guarantee, and financing is available.

FAQ

What is routing in a wiring harness?

Routing is the physical path a wiring harness takes through a vehicle, including every bend, clamp point, and pass-through between the power source and each connector. Good routing accounts for bend radius, clearance from heat and sharp edges, and strain relief at every termination.

What are the best practices for wire harness routing?

Core practices include keeping bends at three to ten times the bundle diameter depending on whether the section is static or flexing, placing the first clamp 50 to 80 millimeters from each connector, and maintaining roughly 100 millimeters of separation between power and signal wires, as outlined in EMC and routing guidance. Crimps should meet SAE/USCAR-21 performance requirements and every panel pass-through needs a properly sized grommet.

How do I assemble a wire harness?

Start on a form board, routing heavy-gauge wires first and signal wires last, using sleeved nails to hold the shape at each bend. Add service loops near connectors, crimp every termination with a calibrated tool, and inspect each clamp and breakout point before the harness leaves the bench.

How do I know which wire goes where?

Follow the wiring diagram for your specific installation, matching wire color and gauge to the circuit it feeds, and confirm each connection with a multimeter before final assembly. Our lighting best practices guide covers circuit identification for common lighting installs.
